[Cake] improving inbound shaping

Sebastian Moeller moeller0 at gmx.de
Fri Mar 3 04:22:29 EST 2017

Hi Dave,

Last time I tested this I came to the conclusion, that going via ifb and mirred cost something like 5% shaper sqm performance on ingress. While not nothing I am not sure this as big a performance issue as you seem to argue.
Your proposal would improve usability quite a lot though if we could avoid the whole ifb-dance...

To assess the cost of the mirred ifb ingress, I simply instantiated the shaper for internet download not on ingress of the wan interface, but on egress of the LAN interface connecting the sole testing host, so I believe the only difference in work for the system should be the ifb/mirred processing.

On March 3, 2017 7:54:23 AM GMT+01:00, Dave Taht <dave.taht at gmail.com> wrote:
>As that's the highest cpu user there is, (and the biggest problem I

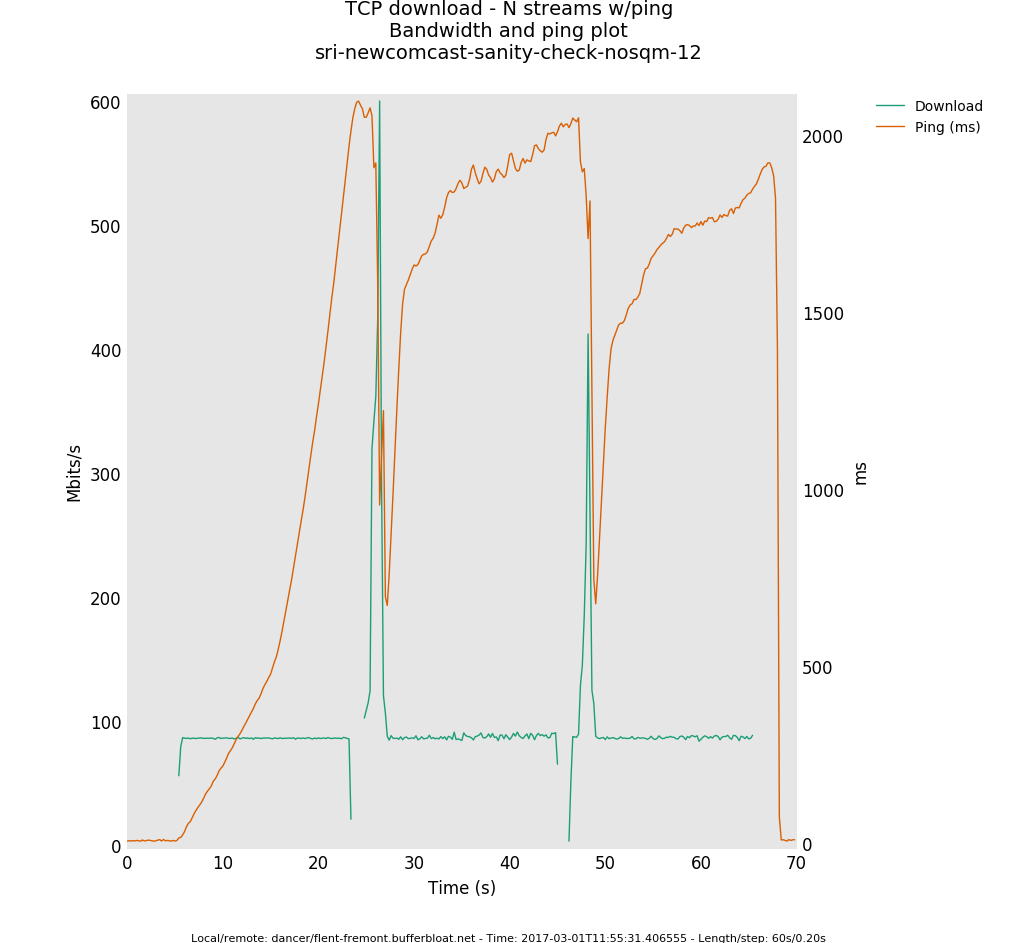

>have, on comcast, there's 2 sec of latency at 100mbit without shaping:
> http://www.taht.net/~d/comcast2/asmiserabledlasever.png
>(more flent data there).
>It's always been a daydream to somehow bypass the existing tc_mirred
>facility we use and be able to express:
>tc qdisc add dev eth0 ingress cake bandwidth 990mbit
>and have that "just work". My hope would be that that would halve
>the packet copies needed (don't know if that's the case in the first
>When I last looked at it (2+ years ago), that portion of linux was a
>hairball that extended back to the late 90s, and I gave up.
>There were a few commits there recently - adding hardware offload
>support for the flower classifier and this one:
>commit d2788d34885d4ce5ba17a8996fd95d28942e574e
>Author: Daniel Borkmann <daniel at iogearbox.net>
>Date:   Sat May 9 22:51:32 2015 +0200
>    net: sched: further simplify handle_ing
>    Ingress qdisc has no other purpose than calling into tc_classify()
>    that executes attached classifier(s) and action(s).
>   It has a 1:1 relationship to dev->ingress_queue. After having commit
>   087c1a601ad7 ("net: sched: run ingress qdisc without locks") removed
>    the central ingress lock, one major contention point is gone.
>    The extra indirection layers however, are not necessary for calling
>    into ingress qdisc. pktgen calling locally into netif_receive_skb()
>    with a dummy u32, single CPU result on a Supermicro X10SLM-F, Xeon
>    E3-1240: before ~21,1 Mpps, after patch ~22,9 Mpps.
>Dave Täht
>Let's go make home routers and wifi faster! With better software!
